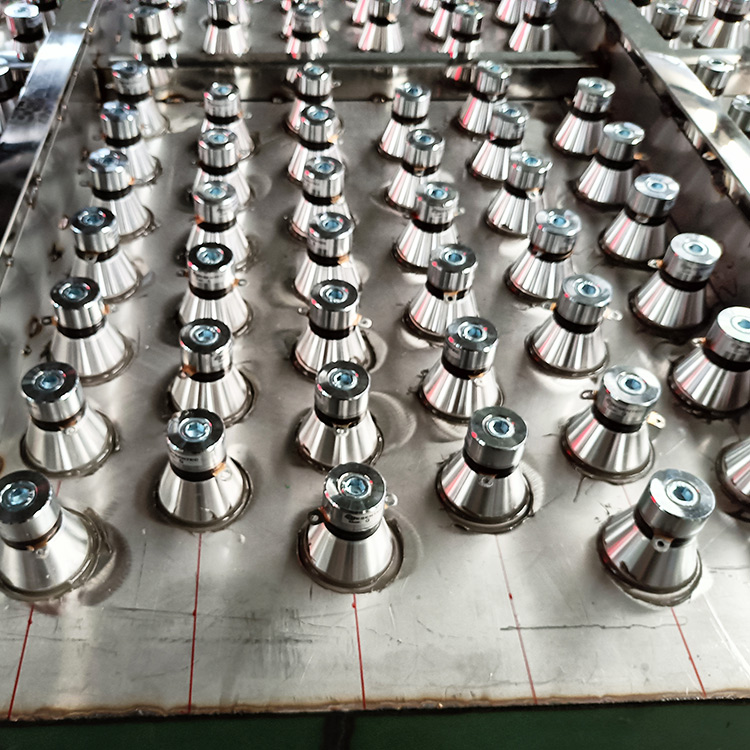

40KHz 28KHz Ultrasonic piezoelectric transducer for ultrasonic cleaner

Short Description:

Ultrasonic transducers utilize the piezoelectric effect of piezoelectric ceramics with the same resonant frequency to convert electrical energy into mechanical vibration. Usually, ultrasonic waves are generated by an ultrasonic generator, converted into mechanical vibration by an ultrasonic transducer, and then generated by an ultrasonic export device and an ultrasonic receiving device. Therefore, as an energy converter device, the function of an ultrasonic transducer is to convert the input electrical power into mechanical power (i.e. ultrasonic) and transmit it out, while consuming a small portion of its own power.

Our equipment is mainly used for cleaning parts and workpieces.

Send email to us

Product Detail

Product Tags

Video Show

Use to

Ultrasonic cleaning, electroplating factory, hardware accessories, dishwasher industry electronic factory component cleaning, circuit board factory circuit board cleaning, LED cleaning medical equipment cleaning, ceramic, stainless steel cleaning, fiber optic ceramic parts cleaning, optical lenses, mobile phones and other display screen cleaning.

Product Features

1. Piezoelectric ceramic sheet
Imported piezoelectric ceramic sheets with good ultrasonic effect, uniform and powerful density, and fast cleaning speed.

2. High quality conversion
Ultrasound has low heat generation and high conversion rate, with a tested conversion rate of over 90%.

3. Excellent craftsmanship
Aviation aluminum processing, some specially made transducers are processed in pure aluminum, with an ultra-low failure rate in the industry, with a failure rate of<0.3% and good resistance to attenuation.

4. Quality assurance
The factory frequency is accurate, and all transducers are within the range of 0.5KHz.

5. Strict quality control
The product qualification rate reaches 100%, and with good matching, the service life can reach 50000 hours.

Scope of application

Ultrasonic transducers have a wide range of applications, which can be divided into industries such as industry, agriculture, transportation, daily life, medical treatment, and military according to their application; According to the implemented functions, it can be divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc; According to the working environment, it can be divided into liquids, gases, organisms, etc; Classified by nature, it can be divided into power ultrasound, detection ultrasound, ultrasound imaging, etc.

Detailed specifications

Product name	Ultrasonic transducer
Power	100W Customizable
Frequency	20KHz Customizable
Weight	0.5KG
Conversion rate	Greater than 90%
Output wiring	The middle of the insulation pad is directly adjacent to the metal negative
Appearance size	Diameter 57MM, height 76MM
Note	Specification parameters can be customized as needed
